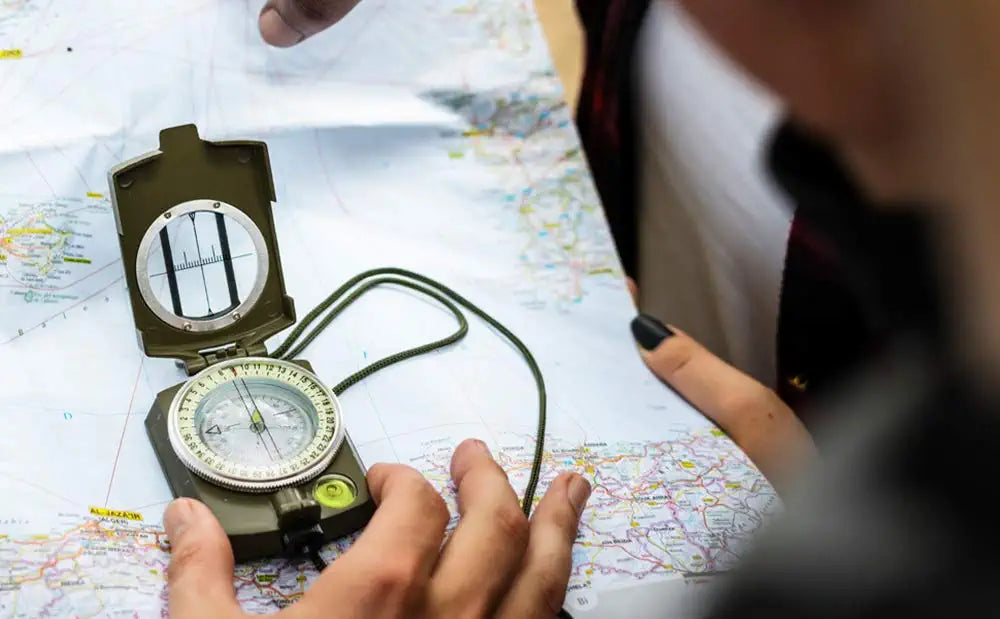

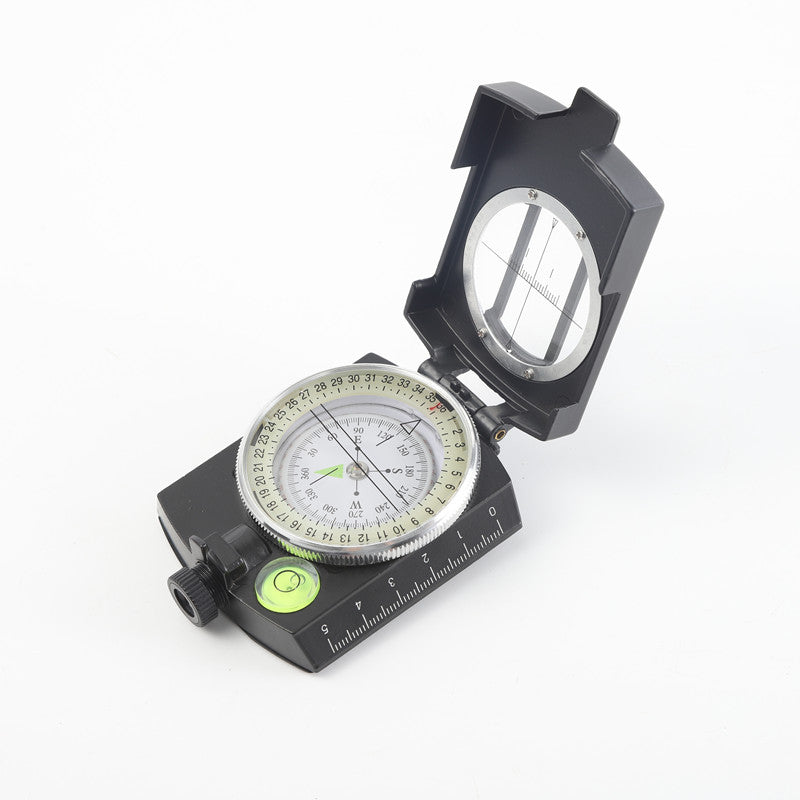

Getting lost while trekking or walking through a dense trail is perhaps our biggest fear. Handheld GPS, or Smartphones come in handy but they will be not functional if out of battery or signal. Therefore, having an “old-school” compass is crucial when you’re out in nature: on-trail or off. The EK-01 is one of our best lensatic compasses that are extremely easy to use while moving through unknown terrains. It has been tried and tested through some of the most extreme experiments, suitable for use in extreme weather conditions and environments, it will be a very powerful tool for your adventures together with an appropriate map.
Features of EK-01 Lensatic Compass
• Accurate measurement of directions

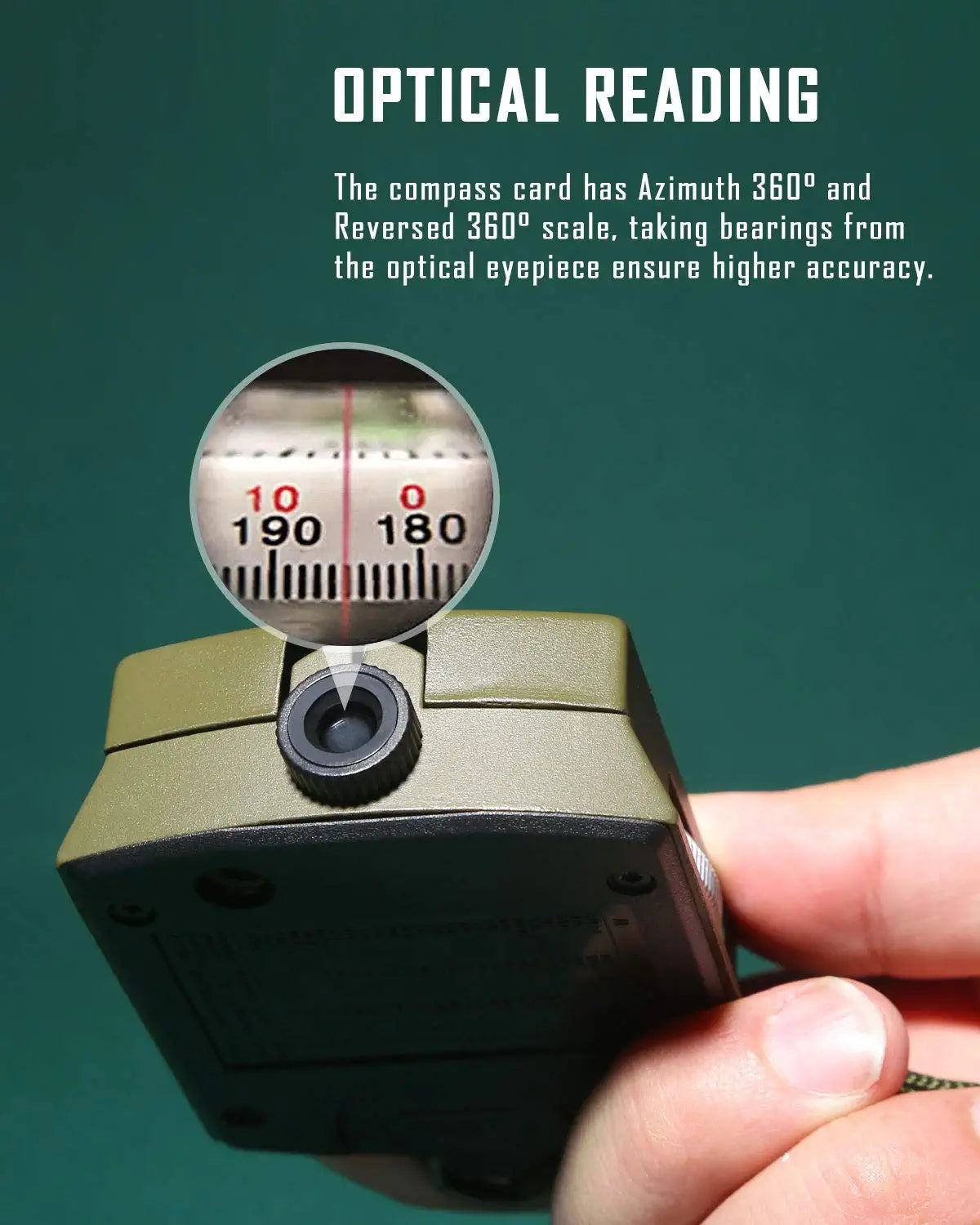

• Optical reading of card for higher accuracy
• Thermo-elastic liquid-filled housing with floating dial
• Scale: Azimuth 360°, Reversed 360°
• High-resolution rotating bezel ring
• Threads for a tripod mount for stable operation
• Built-in bubble level
• Sighting lines on the cover
• Durable and sturdy outer body casing for rough handling
• Extreme weather condition usability
• Conversion chart for angle, gradient & distance on the backplate
1. Durability

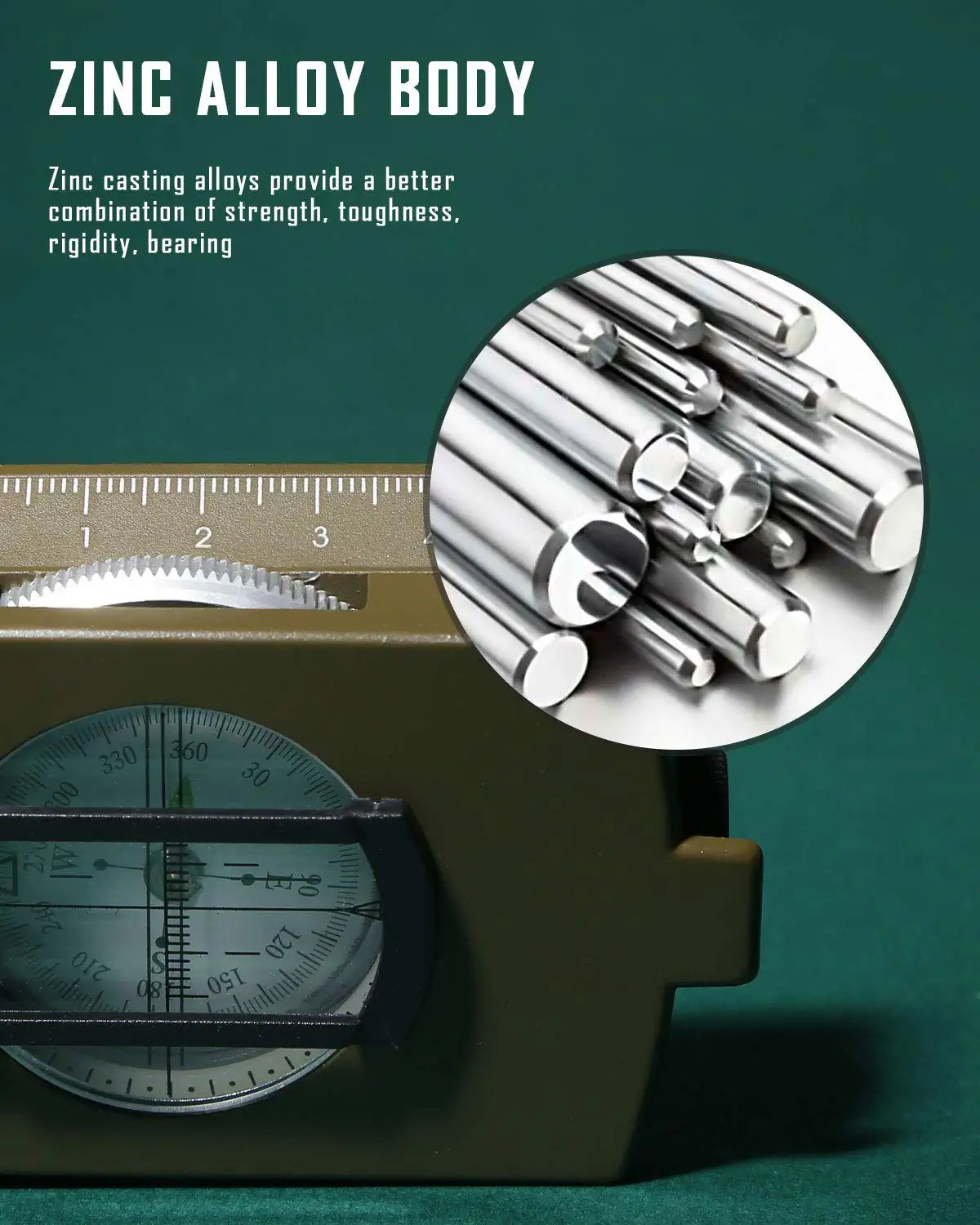

A compass for hiking must be durable because there is a high possibility it will get bumped in your backpack or fall on the ground at some point. To ensure durability, EK-01 compass has an anodized Zinc Alloy metal housing, and is proofed to resist harmful conditions, such as sand particles or being emerged in water.
2. Stability & Speed

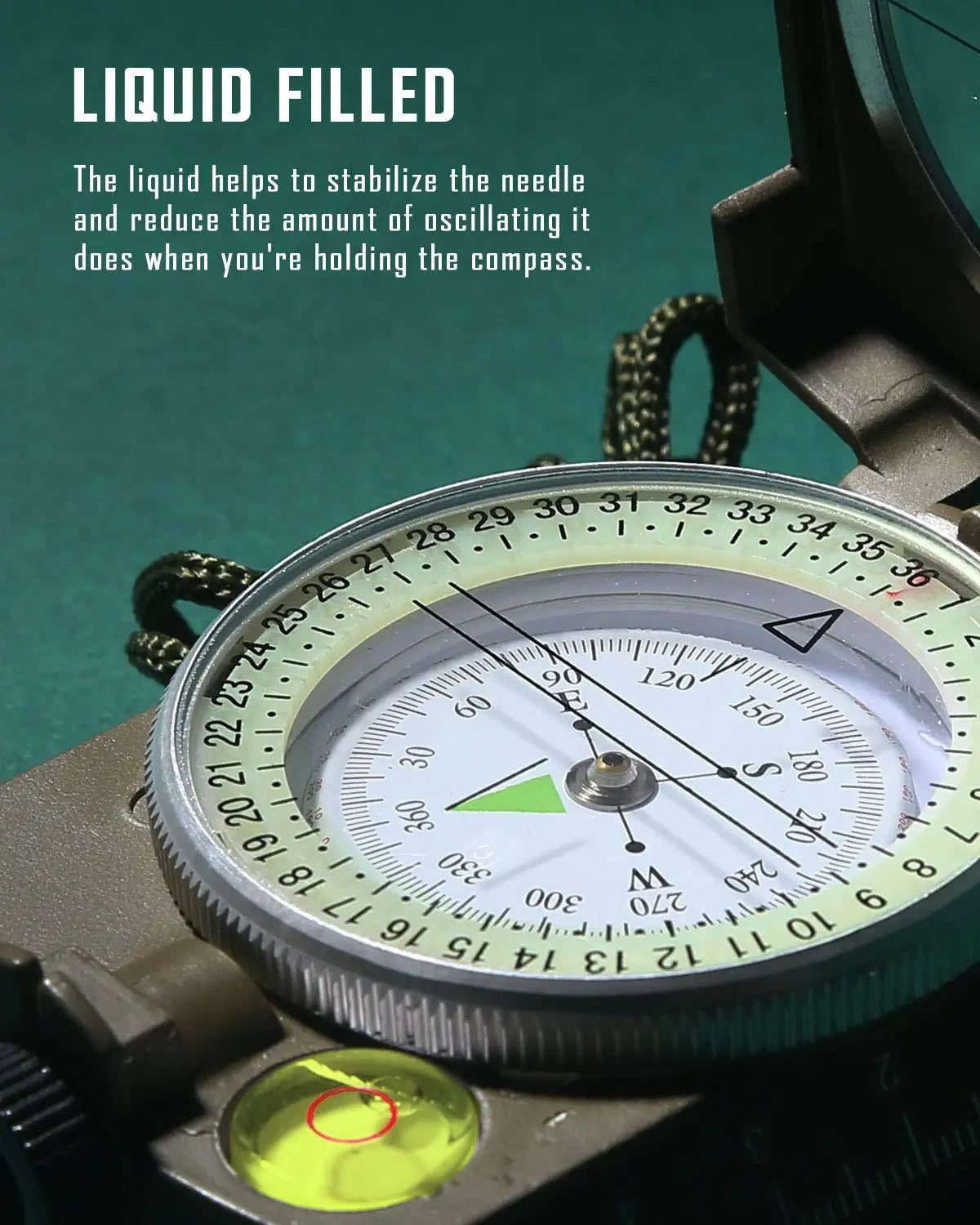

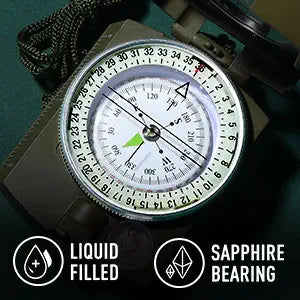

The needle should point to the north immediately and with ease. Even if you’re hiking leisurely, bad weather can come on fast and you’ll want a needle that settles fast. EK-01 compass is liquid-filled and has a Saphire jewel bearing, allows the needle to move freely, and keeps it from twitching when you’re taking readings.
3. Wide Temperature Range

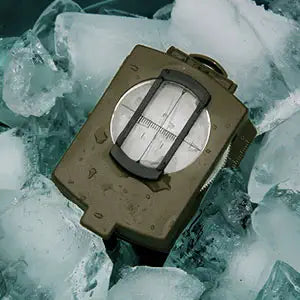

If you're hiking in low temperatures such as cold winter, or in hot temperatures like the desert, you want to make sure your compass can keep up. The working temperature of EK-01 compass is -30° C to +60° C / -22° F to +140° F, ensured the liquid does not freeze or produce bubbles inside.
| Glass material | Acrylic | Jewel bearing | Yes |
|---|---|---|---|
| Shell Material | Zinc Alloy | Compass accuracy | ±1° |
| Dial Material | Zinc Alloy | Waterproof | Yes |
| Tripod mount | Yes, Standard 1/4" | Fluorescence | Yes |
| Dial Diameter | φ38mm | Operating temperature | -30° C to +60° C / -22° F to +140° F |
| Direction scale | Degrees | Conversion table | Cotangent 0-50° |
| Needle | Card | Unit Dimension | 85 x 63 x 30mm / 3.35 x 2.48 x 1.18" |
| Liquid filled | Yes | Weight | 192.6g / 6.79oz |
